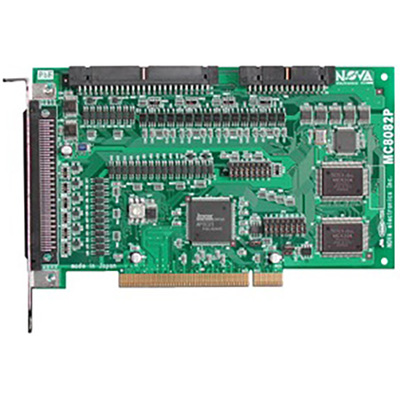

Mạch Nova electronics PCI Bus 8-Axis Motion Control Board (MC8082P)

MC8082P is a PCI-bus compliant PC/AT compatible circuit board equipped with 2pcs of 4-axes motion control IC "MCX304". It can independently control 8-axes of either stepper motor or pulse type servo motor for position and speed controls. MC8082P can control each 8-axes motor independently and simultaneously although it is PCI Half-Size. The necessary signals, drive pulse output and limit sense input are assigned to the rear connector. Each signal, encoder input, general output or drive operation is assigned to the surface connector on the board.
