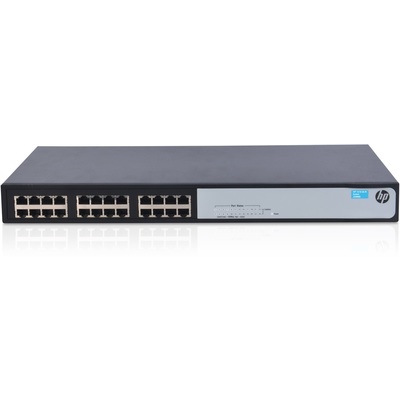

Thiết Bị Chuyển Mạch HPE OfficeConnect 1410 24 R (JD986B)
Model | JD986B |
I/O ports & slots | 24 RJ-45 autosensing 10/100 ports Duplex: half or full (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX) Supports a maximum of 24 autosensing 10/100 ports |
Memory & processor | 8kb EEPROM; packet buffer size: 2 Mb |
Mounting | Mounts in an EIA standard 19-inch telco rack (hardware included); desktop mounting |
Performance | 100 Mb Latency: < 11 µs (LIFO 64-byte packets) 1000 Mb Latency: - Throughput: 3.5 Mpps (64-byte packets) Switching capacity: 4.8 Gb/s MAC address table size: 8192 entries |
Electrical Spec | Frequency: 50/60 Hz Maximum heat dissipation: 21 BTU/hr (22 kJ/hr) AC voltage: 100 - 240 VAC Current: 1.1 A Maximum power rating: 3.6 W |
Environment | Operating temperature: 32°F to 104°F (0°C to 40°C) Operating relative humidity: 5% to 95% @ 104°F (40°C), noncondensing Nonoperating/Storage temperature: -40°F to 158°F (-40°C to 70°C) Nonoperating/Storage relative humidity: 5% to 90% @ 149°F (65°C), noncondensing Altitude: up to 16,404 ft (5 km) Acoustic: Power: 0 dB No fan |
Safety Cert | UL 60950-1CSA 22.2 60950-1IEC 60950-1:2005EN 60950-1:2006 + A11:2009 |
Emissions | FCC Rules Part 15, Subpart B Class A |
Immunity | Generic: EN 55022 CISPR 22 EN: EN 55024, CISPR 24 ESD: IEC 61000-4-2 Radiated: IEC 61000-4-3 EFT/Burst: IEC 61000-4-4 Surge: IEC 61000-4-5 Conducted: IEC 61000-4-6 Power frequency magnetic field: IEC 61000-4-8 Voltage dips and interruptions: IEC 61000-4-11 Harmonics: IEC 61000-3-2 Flicker: IEC 61000-3-3 |
Standards & protocols | General protocols IEEE 802.1p Priority IEEE 802.3ab 1000BASE-T Gigabit Ethernet over twisted pair (10/100/1000 models only) IEEE 802.3i 10BASE-T Ethernet over twisted pair IEEE 802.3u 100BASE-TX Fast Ethernet, 100BASE-FX with autonegotiation IEEE 802.3x Flow Control IEEE 802.3z 1000BASE-X Gigabit Ethernet over fiber (10/100/1000 models only) |
Dimension | 44 x 17.3 x 4.4 cm |
Weight | 2.0 kg |
Thương hiệu: HPE | Bảo hành: 12 tháng
